RETIport 3S

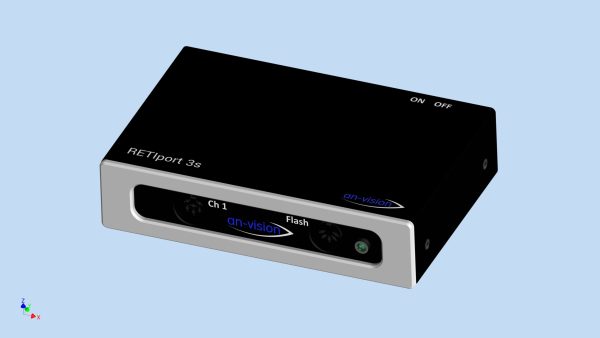

49-99-1.1_RETIport 3s schräg vorn (2021_06_02 16_55_21 UTC)

RETIport 3S electroretinography

Algerbrush II (with 3.5 mm diamond burr)
Smartscope Pro fundus camera

The next generation of the RETIport ERG system is based on the newest technology and on decades of experiences.

Single channel system with Koijman electrode for photopic and scotopic tests.
Small, portable unit that can be used with laptop computer or tablet.

AC or portable external battery powered
Well tolerated by most species without sedation

What is new?

  • miniature size
  • additional programs
  • portable
  • wall and power bank charged
  • less noise

What is the same?

  • High end quality
  • Reliability
  • Flash & Koijman system
  • Dark screen for scotopic
  • Easy to use

Optional:

  • Jet electrodes for small eyes
SKU: 10001754 Categories: , ,
Add to wishlist

Description

Important Note(s)
 Software

  • Configured for veterinary use
  • ERG – photopic and scotopic
  • Intensity adjustable in steps of 5 dB
  • Range from -25 dB to 10 dB
  • Standard flash 3 cds/ m2= 0 dB
  • Background light 25 cd/ m2
  • Artifact rejection
  • Bio signal and impedance

Hardware

  • Portable system delivered in carrying case
  • Connection to computer via USB port
  • Integrated LED flash in Koijman electrode
  • Electrode cables included
  • 3 electrode needles included
  • AC power cord and portable external battery included
  • Laptop not included
Technical Information
Laptop-connection:
 USB 2.0 or 3.0
Power-input:
 115-240 VAC 50/60 Hz / 40 VA or portable external battery
Dimensions:
 159 x 102 x 38 mm (6.25 x 4 x 1.50”)
Stimulus-frequency:
 0.01 -100 Hz
Time Base:
 10 ms – 1000 ms
Flash Stimulus:
 Flash from -25 dBV to + 10 standard flash 0 dB = 3.0 cds/ m2
General system requirements:
 Windows 10, 1 GB disc space, screen resolution 1024 x 768 pixels, one free USB port.
