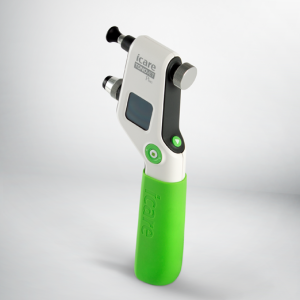

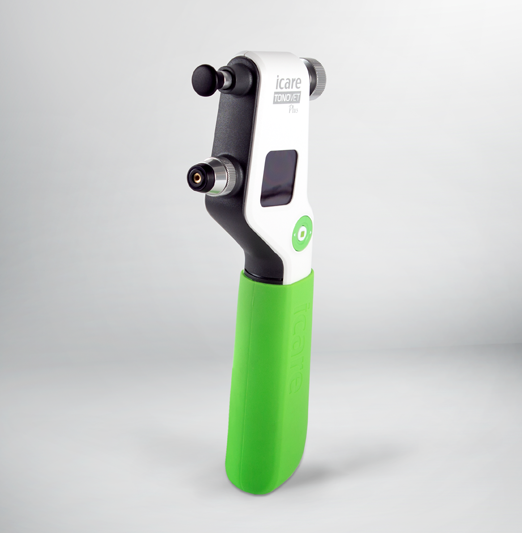

TONOVET Plus
TONOVET Plus is the new generation tonometer for quick and easy veterinary IOP measuring.
iCare TONOVET Plus tonometer is used for measuring IOP on animal patients by general veterinary practitioners, veterinary ophthalmologists and other veterinary medical personnel.

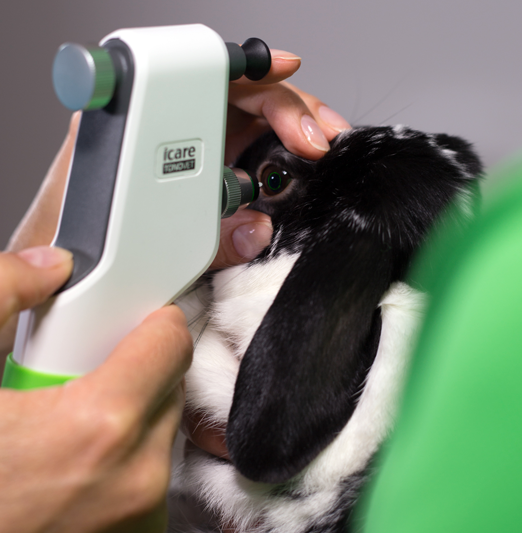

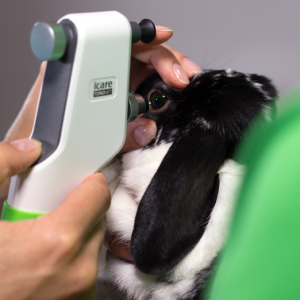

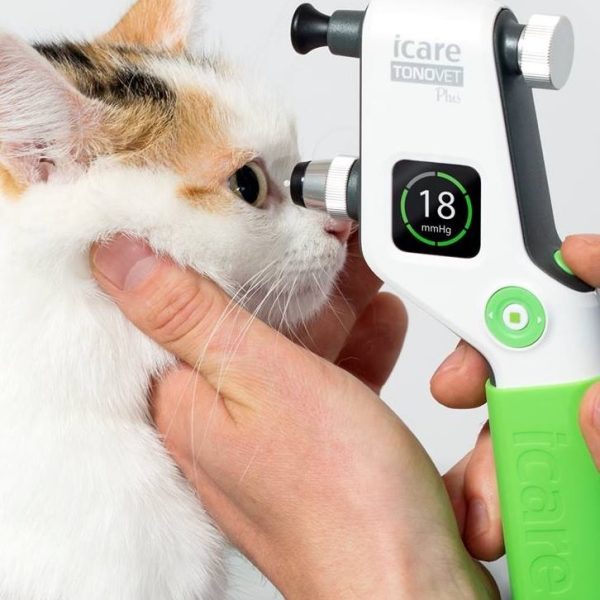

As with all iCare tonometers, TONOVET Plus tonometer is based on a rebound measuring principle, in which a light weight probe is used to make momentary contact with the cornea. The gentle measurement does not require any anesthetic nor does it cause corneal reflex in the majority of animals. iCare rebound tonometers are easy to use as they do not require maintenance calibration by the user.

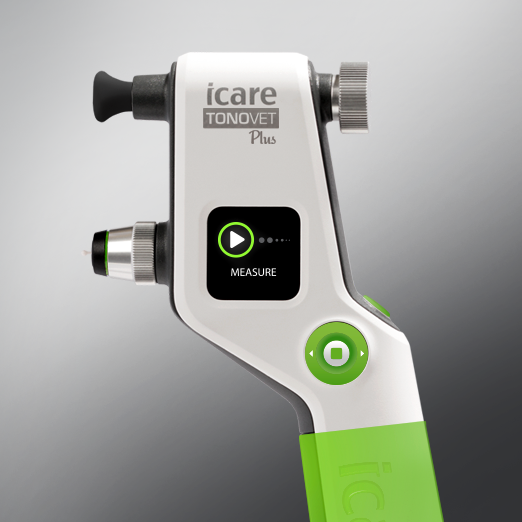

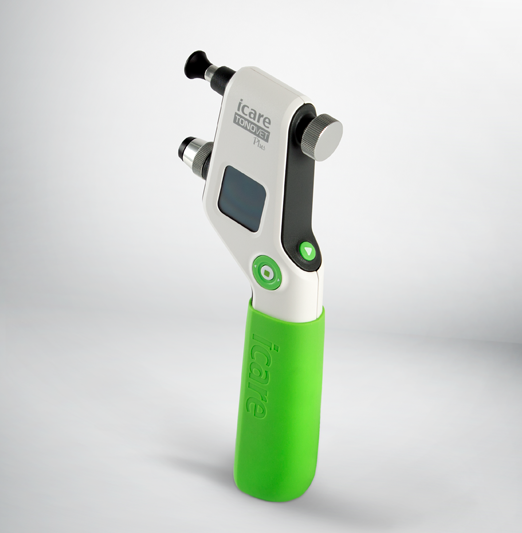

TONOVET Plus is even easier to use. It features an advanced user interface with a clearer, larger display. Red/ green positioning lights help to find the correct angle and aim to the middle of the cornea. The automatic measuring sequence lets you choose if you want to take single readings or take all 6 measurements with one press of the button.
- Description
Description
Technical data
Model name
TV011
Dimensions
24 – 29 mm (W) x 35 – 95 mm (H) x 215 mm (L)
Weight
140 g (without batteries), 230 g (4 x AA batteries)
Power supply
4 x AA non-rechargeable batteries, 1.5V alkaline LR6
Measurement range
10Â –Â 60 mmHg
Accuracy
± 2.5 mmHg (10 – 30 mmHg) and ± 10% (> 30 – 60 mmHg)
Repeatability
(coefficient of variation) < 8 %
Accuracy of display
1 mmHg
Display unit
Millimeter of mercury (mmHg)
This device has BF-type electric shock protection
