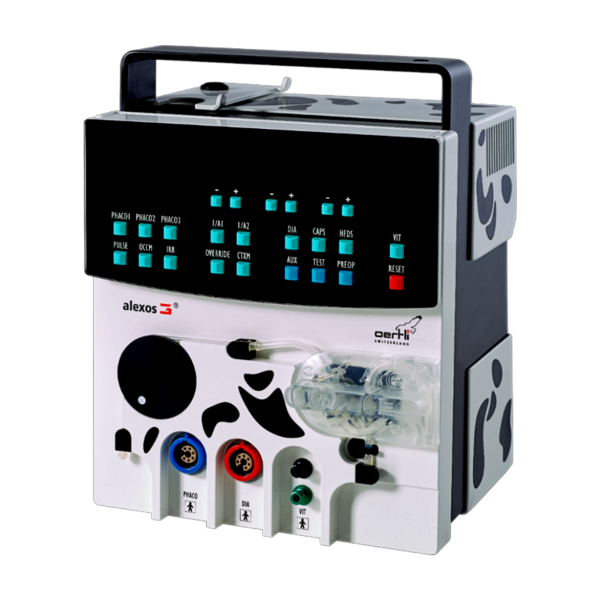

Alexos 3 Phacoemulsification System

For Small & Large Animals

The Alexos3 makes cataract surgery incredibly fast, safe, calm, and – thanks to its excellent mobility – economical and everywhere accessible.

Small platform, great performance

The Alexos3 is a thoroughly compact and portable surgical platform for cataract and glaucoma surgery. The impressively small housing contains all of the Alexos3’s innovative power. The supremely precise flow control, the powerful performance and the high user-friendliness make the Alexos3 the perfect device for veterinary ophthalmic surgery in a variety of conditions.

Fluidics based on physics – perfectly used.

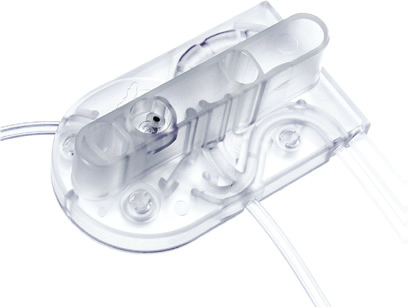

Through the use of fluidics based on physics, the Alexos series reputation as an innovative leader in veterinary ophthalmic surgery is reconfirmed by the Alexos3. The fluidics concept makes consistent use of the laws of physics. Thanks to the perfect flow control of the peristaltic principle, the Alexos3 unfolds unimaginable precision and power in phacoemulsification by means of easyPhaco, in I / A and in anterior vitrectomy. The flow can be controlled in steps of 0.1 ml.

SPEEP – Speed and Precision

The unique pump innovation is at your disposal now! The SPEEP pump offers you more efficiency and precision in your cataract surgery through its precise control of flow and vacuum. With the SPEEP pump, you are given a highly effective tool for even easier, safer and more efficient work in your daily surgical routine.

————————————————-

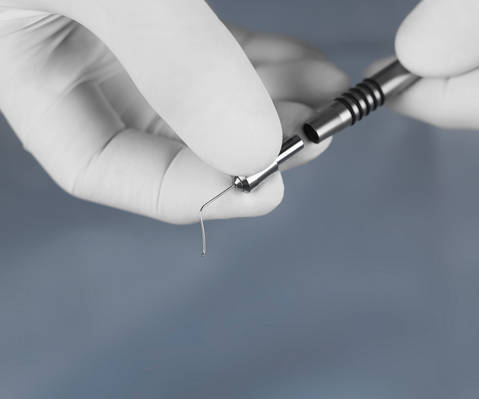

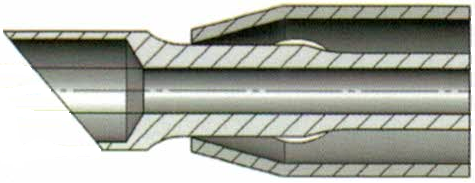

The space-saving and portable surgical platform ensures safe cataract surgery of the highest level, both in cutting-edge high-performance operating theatres and under awkward circumstances or unusual conditions. Thanks to easyPhaco, you achieve unsurpassed chamber stability, efficient fragment aspiration and perfect emulsification. Capsulorhexis is considerably easier with HF capsulotomy. In addition, the Alexos3 also offers decisive advantages and excellent characteristics in anterior vitrectomy.

Description

Important Note(s)
Alexos3 Phaco System with SPEEP

  • Truly portable
  • Intuitive to use
  • Accessories for small and large animals
  • Low maintenance required
  • Requires little space, yet provides full functionality of large units
  • A cutting edge phaco with all functions
  • Efficient fluidic system
  • Incision sizes for phaco tips: 1.4 – 3.6mm
Technical Information
Ultrasound phacoemulsification

  • Continuous linear
  • Pulse Mode
  • Burst Mode

I / A System

  • Perfect chamber stability
  • Efficient aspiration of fragments
  • Coaxial and bimanual
  • Single use and reusable

Diathermy
HF Capsulotomy

  • Small and large animal

Vitrectomy

  • Speed: 30 – 1200 cuts/min with double chop (60 – 2400 cuts/min)
  • Pneumatic cutter (incorporated compressor)

Power requirements

  • Electric: 100-240 VAC, 50-60 Hz, power consumption 200 VA

Dimensions & Weight

  • Dimensions: 220 x 241 (plus 50 mm for handle) x 154 mm (In pole clamp adds 80mm) w/h/d
  • Weight: 5.6 kg
  • Linear pedal: 180 x 250 mm base plate 2.75 kg

Standards

  • IEC601-1, EN60601-1, CE-Mark (CE-class 2B, protection class I), EMC/RFI: EN 6100-4-1, EN 50011/ EN 55081-1 EN 500082
